The structure of the fuel tanker is elliptical cylindrical, made of high-quality steel plate. The whole tank is divided into single or multiple compartments. The compartments can be divided into compartments. The middle of each compartment is welded with sub-compartments to strengthen the wave partition to reduce the oil in the tank when the fuel tanker is running. impact and improve the rigidity of the tank.

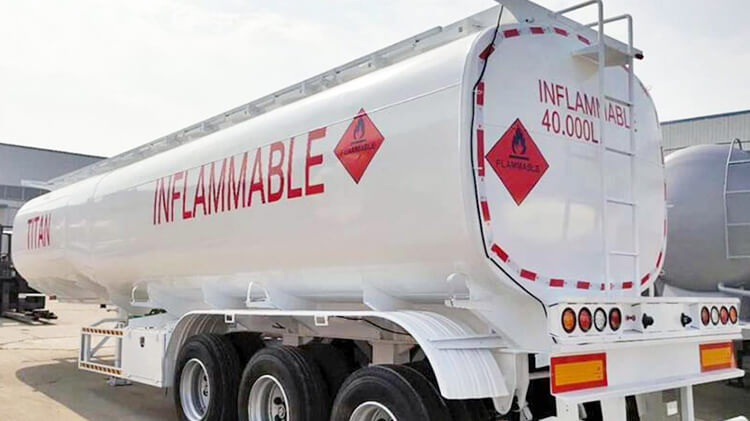

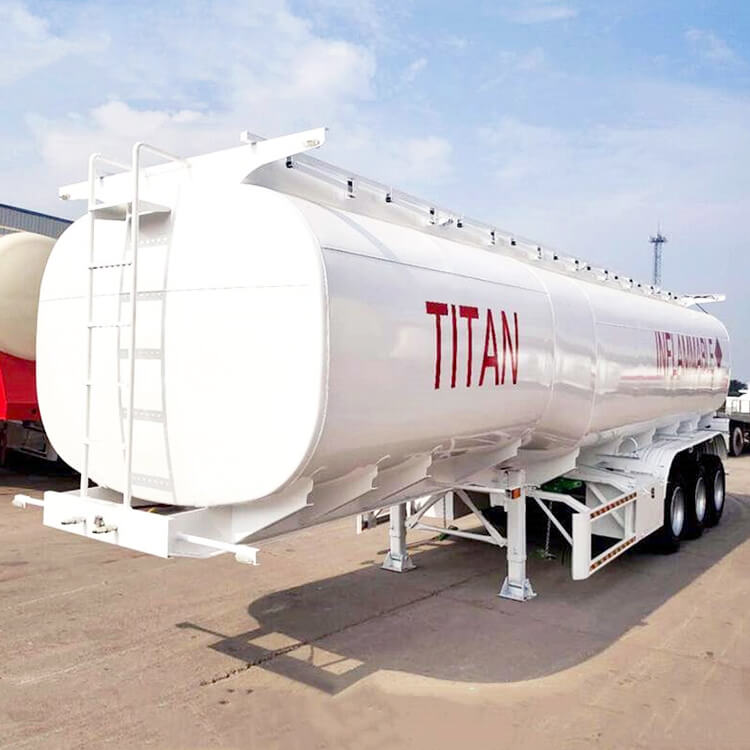

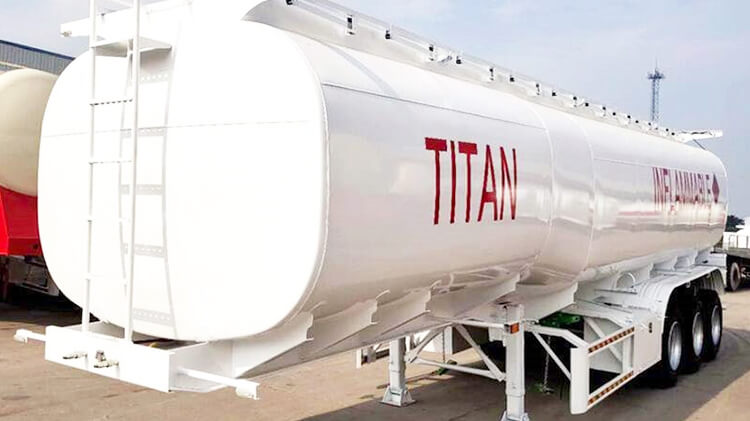

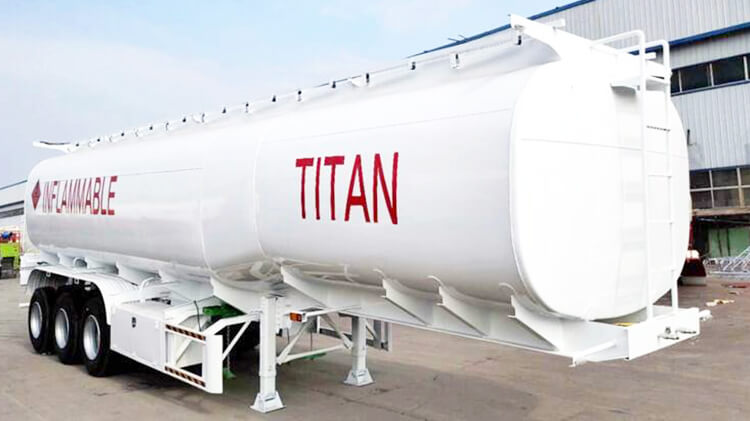

3 Axle 40000 L Fuel Tanker for Sale Price in Benin
3 Axle 40000 L Fuel Tanker for Sale Price in Benin
1. The fuel tanker for sale is equipped with a special fire extinguisher, and it should be equipped with a tow chain and a power avoidance pole. When driving, drag the subway chain to touch the ground to reduce the generation of classics and ensure driving safety.
2. The fuel tanker in Benin is equipped with a breather valve, and the sealing ball in the valve is poured to form an effective seal to prevent oil from leaking out.
3. 3 axle fuel tanker from TITAN is equipped with a high-quality subsea valve, also known as an emergency shut-off valve, installed at the bottom of the tank, which can replace the traditional top-loading refueling for bottom-loading refueling, making the operation easier, time-saving, safe and environmentally friendly for the staff, and effective Prevent oil leakage in the tank, so as to ensure the safety of the oil tank.
4. 40000 liters fuel tanker trailer for sale has a compact structure and high space utilization, which can give full play to its carrying capacity and improve logistics efficiency.
Model: 3 Axle 40000 L Fuel Tanker for Sale Price in Benin
Dimension: 11500mm*2500mm*3700mm (depends on the final design.)
Total volume(L): 40000L
Tank Body Material: 5mm Q235 carbon steel
End plate: 6mm Q235 carbon steel
Manhole Cover: Carton steel
Axle: 3 axles,12T/13T/16T, BPW/ FUWA/ TITAN brand
Landing Gear: JOST or China brand 28T
Suspension: Mechanical suspension
Tire: 12.00R22.5/315.80R22.5/11.00R20/12.00R20 brand can be optional
Discharging Valve: Diameter is 3 or 4 inch
Compartments: Optional
If you are interested in this 3 axle 40000l fuel tanker for sale , welcome to leave your message!
We will provide more details, quotations, catalogs, drawings, and videos for you!
